Can I repair it myself?

αντιγραφή από fixya

I have a Saeco Vienna Plus Superautomatic, the expresso side works fine, but water/steam no longer comes out of the steam wand.



απάντηση από vendingbar
Notice if you can hear the pump when you are opening for steam.If you dont hear it ther is a problem at the switch.If you hear it then the tube is just blocked with milk.
“Thanks, I can hear the pump, plus the espresso side is working. I also concluded that it is just plugged, but I don’t know how to get to the tube to clear it. I can’t descale normally because the steam side isn’t getting water. Can I access the tube with std. tools ie. screwdrivers and/or allen wrenches?”



vendingbar May 05, 2014 Edit Delete
The tube is blocked at the point where you put it in the milk.You just need to unblock it with something thin like a needle .



MissMyLatte May 05, 2014
Yep, did that. It was the first thing I tried. Cleaned the pannarello and removed it from the steel tube and used a pin to make sure it was also clear.



vendingbar May 05, 2014 Edit Delete
Ok..if that didnt work I will upload tomorrow afternoon a picture that will show you how you will get off the tube and clean it.

MissMyLatte May 05, 2014
That would be GREAT, I look forward to seeing that picture.



vendingbar May 06, 2014 Edit Delete

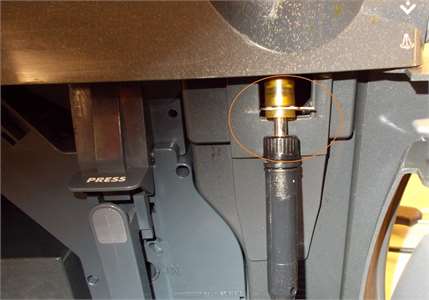

pic one of three

d35f2e36-1203-4dab-9fae-1f085678443f

vendingbar May 06, 2014 Edit Delete

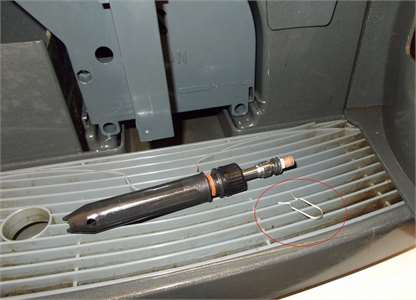

pic two of three

cd863672-7f2e-4ca9-8e87-ce9ae6efe598
vendingbar May 06, 2014 Edit Delete

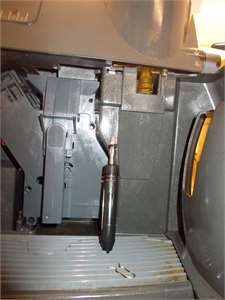

pic three of three

e427e32d-fd60-43df-8918-f81a9829a39c



MissMyLatte May 06, 2014
OK, Excellent pics! I removed and flushed it out. Still no luck. RE: the pump. When I first open the steam valve, the pump starts then all I hear is a ticking sound and I close the valve for fear something will overheat.



vendingbar May 07, 2014 Edit Delete
Under the machine there is a label , can you write me everything ?



MissMyLatte May 07, 2014
Absolutely, I appreciate your help. Here it is:

MissMyLatte May 07, 2014
Oops, hit return too soon. SAECO Type: Sup018M 120v 60 Hz 1250w Serial Nr 9009SR40080516 Date: 10/2009 Cod 10003178 Do Not Immerse NE Pas Immerger Household use only Usage domestique seulement cSA US



vendingbar May 07, 2014 Edit Delete

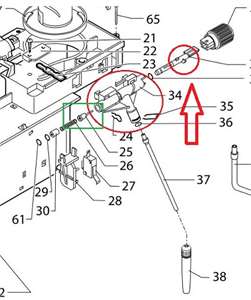

I saw your machine and there is two parts that can stop the water.The most possible is the steam swich, that is plastic part and pushing a metal part to opens water.That plastic some times brakes and cant push no more the metal part.Try while you turnning the button for steam to press it in.This is exactly the move that the button do inside.If you want to see that you must get of the machines cover.To the following picture you will see the plastic part I m talking about.



37dbbdc5-2ad9-4da3-bec6-e4c74fe7eb5c



vendingbar May 07, 2014 Edit Delete
At the small red cycle is the plastic part that brakes.At the green square is the metal part that moves and let the water run.



MissMyLatte May 07, 2014
That was it!!! YOU are AWESOME! I pulled out the steam knob and the plastic part came with it. It doesn’t look broken so I aligned it and pressed it back in and water ran out. There is a slight leak around the metal tube and if I continuously press on the knob water/steam flow is normal, if I stop pressing then the flow turns to a dribble.



MissMyLatte May 13, 2014
I have to press in on the steam knob to make it flow water/steam. Where can I get the plastic part that you circled in the above diagram?
